Cultivator for Sugar Cane fields

Brochures download

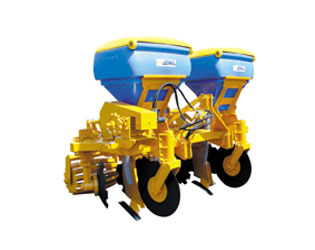

Super Cultivator -SMR 200 HDRS

@

Super Cultivator - SMR 200 HDRS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 16 cultivators discs in 08 sections of 02 discs each, oscillating plant covers in parallelogram, oil bearings, telescopic arms with fast lock system for width plantation regulation, 02 plain discs for sugarcane burning without burn, 02 subsoil elements of 1" in Y shape (double) with steel tip.

SSuper Cultivator - MR 200 RS

@

Super Cultivator - SMR 200 RS

Cultivator SMR 200RS simultaneously performs the raw cut operations, subsoil, fertilizer distribution, farming and sugarcane dehydrated proceedings in cane furrows without burning.
The set is composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 16 cultivators discs in 08 sections of 02 discs each, oscillating plant covers in parallelogram, oil bearings, telescopic arms with fast lock system for width plantation regulation, 02 plain discs for straw cutting and 2subsoilers elements with steel tip.

OPTIONAL: With mechanical driving.

Super Flame Cultivator - SMR 203 HDRS

@

Super Flame Cultivator - SMR 203 HDRS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 16 cultivators discs in 08 sections of 02 discs each, oscillating plant covers in parallelogram, oil bearings, telescopic arms with fast lock system for width plantation regulation, 02 plain discs for sugarcane burning without burning, 02 subsoil's´ elements of 1"in Y shape (double) with steel tip

Super Green Cane Cultivator - SMR 205 RS

@

Super Green Cane Cultivator - SMR 205 RS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 02 plain discs for burnt and green sugarcane farming, subsoil's stems of 1" in Y shape (double stems) with steel tip, straight or cropped discs of 18" With oil bearings and 02 round irons in the sugarcane dehydrated proceeding device.

Triple Operation Cultivator - SMR 202 RS

@

Triple Operation Cultivator - SMR 202 RS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 06 subsoil's stems, 16 discs cultivators in 04 parallelogram oscillating sections with oil bearing.

Super Cultivator - SMR 207 RS

@

Super Cultivator - SMR 207 RS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 10 discs cultivators in 02 sections of 02 discs each and 02 sections of 03 discs each which are oscillating in parallelogram, oil bearings, telescope arms with fast lock system for width plantation regulation, 02 plain straight discs for no burnt cane farming, 02 subsoil's elements with steel tip. (tractor capacity of 80cv)

Liquid and Grainy Fertilizer Applicator - SMR 505

@

Liquid and Grainy Fertilizer Applicator - SMR 505

Assembled on 04 plan discs of 26" and 04 directional stem for fertilizer application.


Combined Cropping 2 Lines Cultivator - SMR 220 HDSA

@

Combined Cropping 2 Lines Cultivator - SMR 220 HDSA

02 plain discs for burnt and green cane farming, 02 subsoil's stems, 04 cropped discs of 24" with oil bearings and 02 backside levelers. GZL model.

Break Back Cultivator - SMR 201 RS

@

Break Back Cultivator - SMR 201 RS

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 04 crow's foot beaks, farming set of 16 parallelogram oscillating discs with oil bearings and backside leveler.

Optional: Mechanical driving.

Triple Operation Cultivator - SMRR 202

@

Triple Operation Cultivator - SMRR 202

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 06 subsoil's stems, 16 discs cultivators in 04 parallelogram oscillating sections with oil bearing.

Optional: Fertilizers mechanical driving.

Super Green Cane Cultivator - SMR 204SA

@

Super Green Cane Cultivator - SMR 204SA

Equipment for no burnt green cane, 02 plain discs for straw cutting, 02 subsoil's stems, and 04 plains discs of 18" with oil bearings and 02 duo-cone plain rolls. (no fertilizer device).

02 Lines Super Cultivator - SMR 200

@

02 Lines Super Cultivator - SMR 200

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 16 discs cultivators in 08 sections of 02 discs each in parallelogram oscillation, oil bearings, telescope arms with fast lock system for width plantation regulation, 02 plain discs for no burnt cane farming.

Optional: Mechanical Driving.

Super 02 lines multiple flame cultivator - SMR 203

@

Super 02 lines multiple flame cultivator - SMR 203

Composed of 02 lines with distribution of fertilizer through a stainless steel spiral system, that are deposits, made in polyethylene, Fertilizer distribution by a hydraulic motor with an oil flow regulation valve, 02 plain discs for burnt and green cane farming, 02 subsoil's stems, 04 cropped discs of 24" with oil bearings and 02 cane dehydrate device angle iron

Optional: Mechanical Driving.

Super Cultivator - SMR 206 SA

@

Super Cultivator - SMR 206 SA

02 plain discs for straw cutting, 02subsoilers stems with automatic disarm 08 cropped discs of 18" in 04 sections of 02 discs each with oil bearings and 02 cane dehydrate device angle iron, 02 backside plainer. It also composed of an herbicide applicator holder adaptation.

@

@
