RA扭力器
SUZUMI REF. |

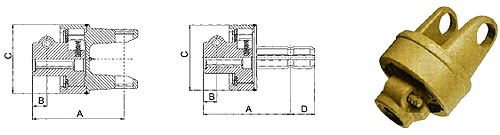

Max torque (Nm) | For PTO shaft | Spline (Female) | Spline (Male) |
A mm |
B mm |
C mm |
D mm |
RA1(RAS1) | ||||||||
1RA1 | 1600 | Series1 | 13/8"Z6 | — | 125 | 24 | 102 | — |
2RA1 | 1600 | Series2 | 13/8"Z6 | — | 130 | 24 | 102 | — |
3RA1 | 1600 | Serles3 | 13/8"Z6 | — | 132 | 24 | 102 | — |
4RA1 | 1600 | Series4 | 13/8"Z6 | — | 138 | 24 | 102 | — |
5RA1 | 1600 | Serles5 | 13/8"Z6 | — | 141 | 24 | 102 | — |
6RA1 | 1600 | Series6 | 13/8"Z6 | — | 148 | 24 | 102 | — |
RAS1 | 1600 | — | 13/8"Z6 | 13/8"Z6 | 136 | 24 | 102 | 38 |

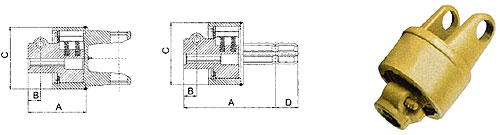

RA2(RAS2) | |||||||||||||||||||||||||||
|
