Single Cylinder-Diesel Engine ( Water Cooled )



Direct Fuel Injection Produces Dynamic Power

Combustion power acts directly on the toroidal piston crown, boosting energy, decreasing thermal lossesl. Extra high output creates the tough torque needed for heavy duty jobs.



Direct Fuel Injection Plus Bosch Pump Adds To Fuel savings.

The ideal combination of a Bosch pump with hole*valve type injection nozzle and toroidal-shaped combustion chamber provides superior firing performance and enviably swift and certain starting Boschs fuel injection pump uses no compound sections for fuel regulation , which reduces wear and dust accumulation. High-pressure Bosch fuel injection performs instantaneously to increase thermal efficiency by eliminating afterburning.





Longer Continuous Operation Than Other Engines With 20% Larger Fuel Tanks. One TouchAir Venting From The Fuel System.



The Unique Vibration-Proof Rubber. Due to these low vibration levels, F engines are the best for use in utility vehicles such as tillers or transportation and agricultural wagons. F engines are also suitable for stationary machines, including pumps.



Direct Fuel Injection Produces Dynamic Power

Combustion power acts directly on the toroidal piston crown,boosting energy, decreasing thermal lossesl. Extra high output creates the tough torque needed for heavy duty jobs.



Durability of Chen Yu Direct Fuel Injection System enhanced by the heat-proof Insulator for the fuel injection valve.

The fuel injection valve is weapped in heat-proof Teflon. This improves the durability of the valve and makes it superior to those of other makers.







規格 SPECIFICATIONS

型號Model

Cy80F

Cy90F

類型Type

臥式、水冷、四行程循環柴油機

zontal diedel engine

燃燒系統 Combustion system

直接噴射 Direct injection

汽缸數 No.of cylinders

1

缸徑x行程 Bore x stroke         mm(inch)

80x87(3.1x3.4)

85x87(3.3x3.4)

排量 Displacement               L(US gal)

0.437(1.115)

0.493(0.130)

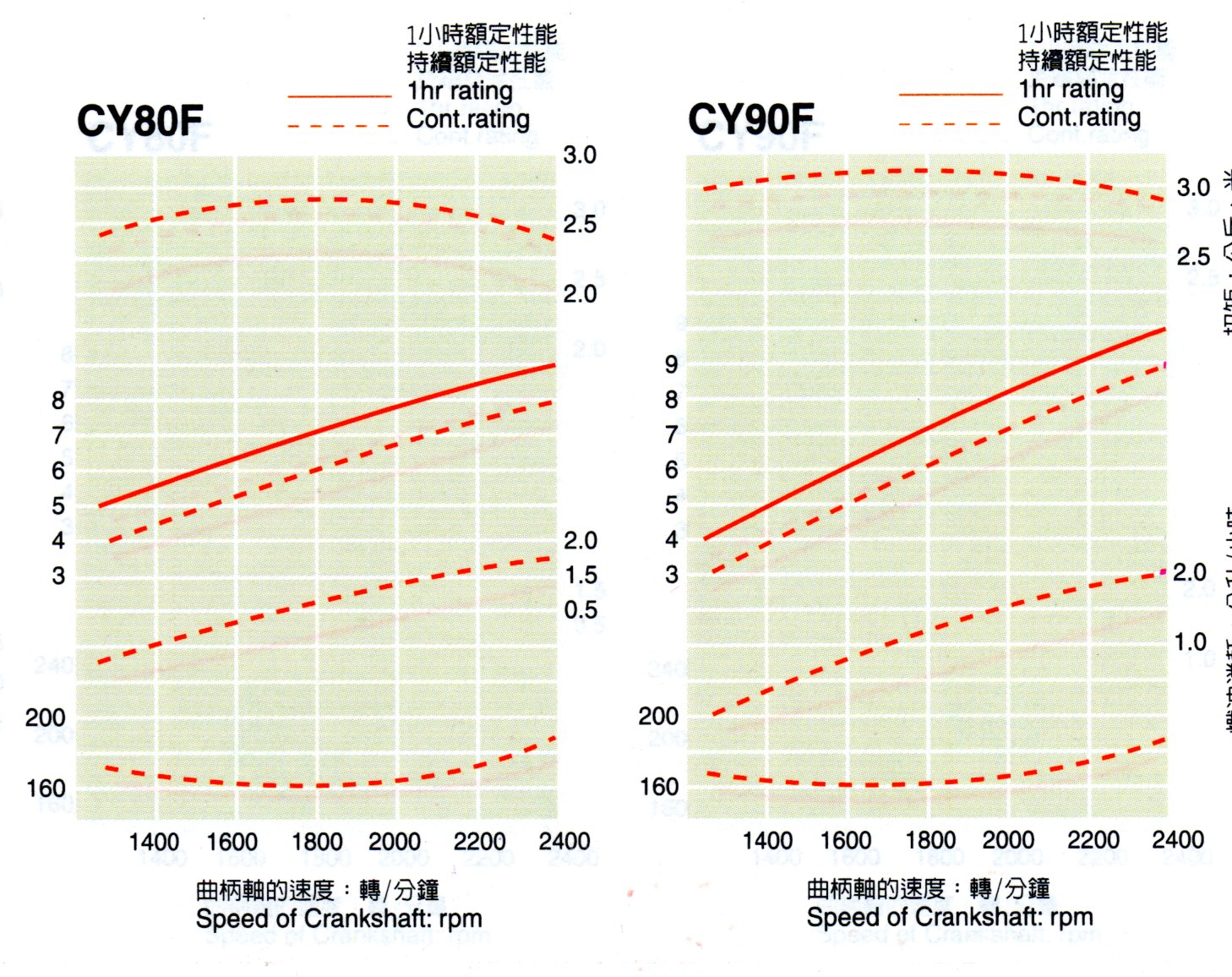

額定連續輸出功率          hp/rpm

Rsted cont output             (kw)

200C

8.0/2400(6.0)

9.0/2400(6.7)

270C

7.5/2400(5.6)

8.5/2400(6.3)

1小時額定連續輸出功率     hp/rpm

At 1-hr. rated output           (kw)

200C

9.0/2400(6.7)

10.0/2400(7.5)

270C

8.5/2400(6.3)

9.5/2400(7.1)

壓縮比 Compression ratio

18

18

適用之燃油 Applicable fuel oil

柴油

燃料噴射 Fuel injection pump

波許型

噴油正時 Injection timeing            deg.

BTDC19.0

噴油壓力幫 Injection pressure   kg/cm2(psi)

200(2884)

燃油箱容量 F.O.tank capacity     L(US gal)

10.5(2.77)

10.5(2.77)

潤滑系統 Lubrication system

帶旋輪線幫和液壓調節閥之充分密封強制潤滑方式 Fored lubrication

潤滑油容量有效/油底殼

Lubricating oil capacity(oil pan)   L(US gal)

0.8/2.2(0.21/0.58)

0.8/2.2(0.21/0.58)

冷卻系統 Cooling system

散熱器

Radiator

散熱器

Radiator

冷卻水容量 Cooling water capacity L(US gal)

1.65(0.44)

1.65(0.44)

啟動系統 Starting system

手動或電動 Hand or Electric

發動機淨重 Engine dry weight       kg(ibs)

86.5

(93.5)(190.7)

86.5

(93.5)(190.7)
