Single Cylinder-Diesel Engine ( Water Cooled )



Direct Fuel Injection Produces Dynamic Power

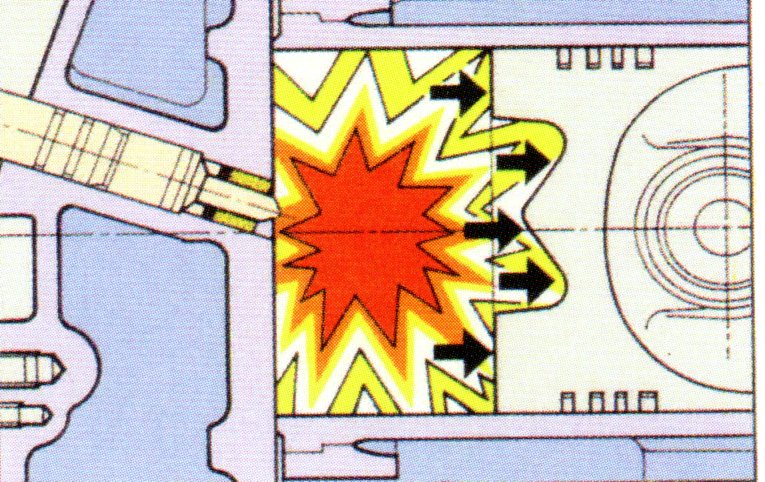

Combustion power acts directly on the toroidal piston crown, boosting energy, decreasing thermal lossesl. Extra high output creates the tough torque needed for heavy duty jobs.



Direct Fuel Injection Plus Bosch Pump Adds To Fuel savings.

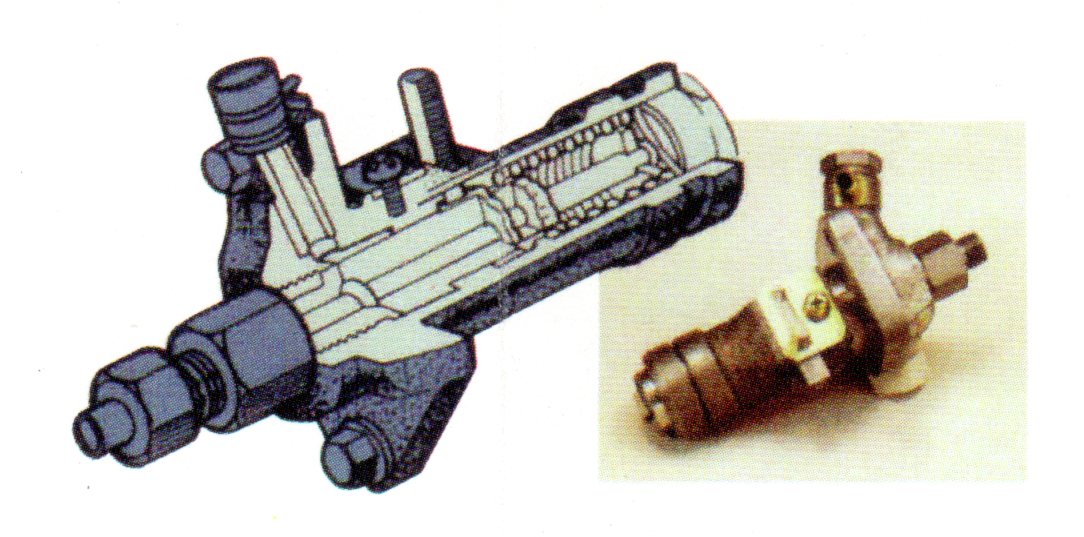

The ideal combination of a Bosch pump with hole*valve type injection nozzle and toroidal-shaped combustion chamber provides superior firing performance and enviably swift and certain starting Boschs fuel injection pump uses no compound sections for fuel regulation , which reduces wear and dust accumulation. High-pressure Bosch fuel injection performs instantaneously to increase thermal efficiency by eliminating afterburning.

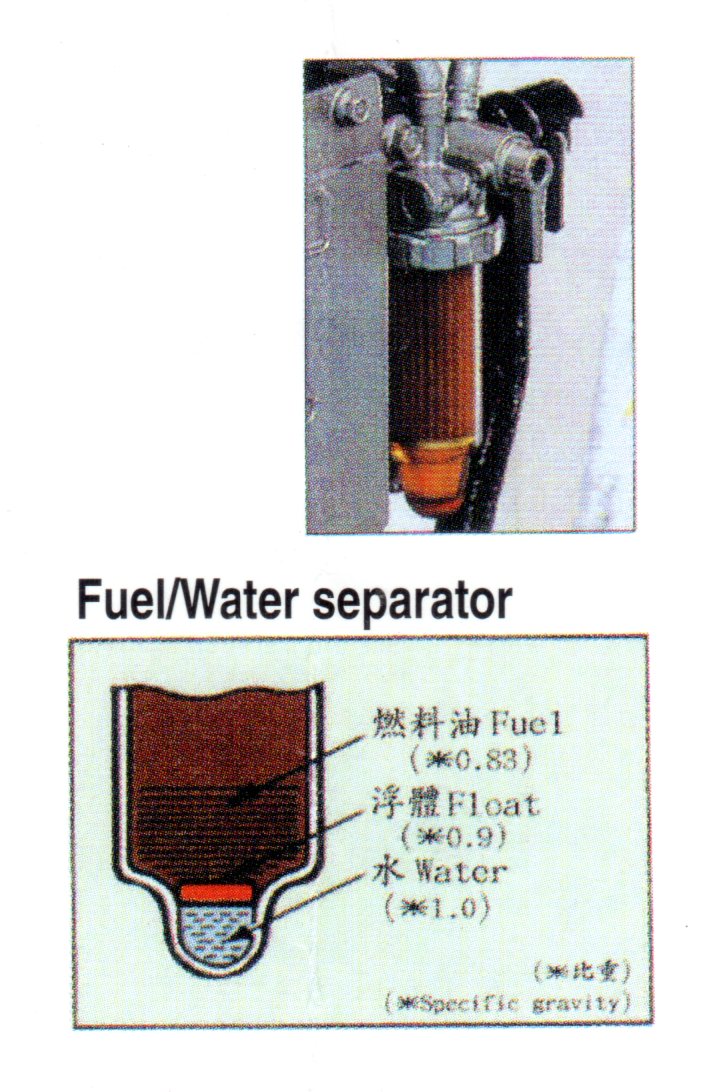

Longer Continuous Operation Than Other Engines With 20% Larger Fuel Tanks. One TouchAir Venting From The Fuel System.



The Unique Vibration-Proof Rubber. Due to these low vibration levels, F engines are the best for use in utility vehicles such as tillers or transportation and agricultural wagons. F engines are also suitable for stationary machines, including pumps.



Direct Fuel Injection Produces Dynamic Power

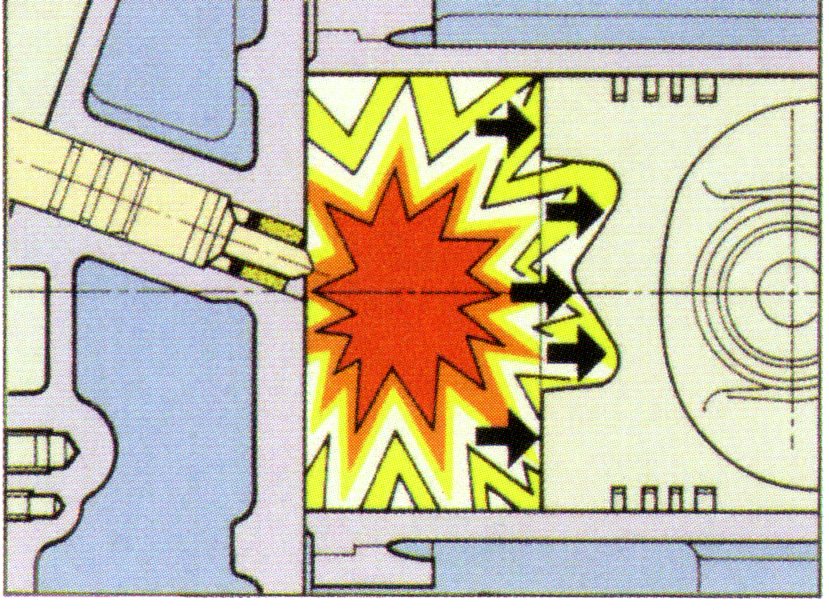

Combustion power acts directly on the toroidal piston crown,boosting energy, decreasing thermal lossesl. Extra high output creates the tough torque needed for heavy duty jobs.



Durability of Chen Yu Direct Fuel Injection System enhanced by the heat-proof Insulator for the fuel injection valve.

The fuel injection valve is weapped in heat-proof Teflon. This improves the durability of the valve and makes it superior to those of other makers.





SPECIFICATIONS

Model  型式

Cy60

Cy60c

Type  規格

Zontal diesel engine

四衝程臥式柴油引擎

NO. of cylinder

1

Bore x stroke

75x75

Output                         BHP/rpm

輸出馬力

A:5/2000

B:6/2400

Stoke volume   排氣量cc

331

Specific fuel consumption            g/HPh

燃料消耗率

210

Cooling system  冷卻系統

漏斗

Hopper

冷凝器

Condenser

Lubrication system  潤滑系統

Fored Iubrication 強制潤滑

Fuel tank capacity  油箱容量

6.5

Oilpan capacity  油箱容量

1.7

Cooling water capacity  冷卻水容量

7.5

1.7

Dry weight  淨重kg

64

69



SPECIFICATIONS

Model  型式

Cy80

Cy80c

Type  規格

Zontal diesel engine

四衝程臥式柴油引擎

NO. of cylinder

1

Bore x stroke

80x85

Output                         BHP/rpm

輸出馬力

A:7/2200

B:8/2400

Stoke volume   排氣量cc

427

Specific fuel consumption            g/HPh

燃料消耗率

210

Cooling system  冷卻系統

漏斗

Hopper

冷凝器

Condenser

Lubrication system  潤滑系統

Fored Iubrication 強制潤滑

Fuel tank capacity  油箱容量

9.5

Oilpan capacity  油箱容量

2.2

Cooling water capacity  冷卻水容量

9.5

2.2

Dry weight  淨重kg

82

86
